Pre-Insulation Crimp Machine WPM-5-40

Name: Pre-Insulation Crimp Machine WPM-5-40
Brand: Xiamen Jingwei Technology Co., Ltd.
SKU: WPM-5-40
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

Model No: WPM-5-40
The Pre-Insulation Crimp Machine WPM-5-40 crimps pre-insulated terminals with precision and efficiency. This machine ensures secure and reliable crimps for pre-insulated terminals, enhancing the quality and durability of electrical connections.
Inquiry now

Detailed description

Semi-automatic Ferrule Terminal Crimping Machine/Wire Strip And Crimp Machine For Pre-insulation, Bulk Tube Pre-insulation Terminal Crimping Machine, Tube Pre-insulation Terminal Crimping Machine
Model: WPM-5-40
Power supply: AC220V 50/60Hz
Crimp shape: Quadrilateral crimp
Production capacity: 2.5s
Operating temperature: 10-25℃
Working humidity: 30-80%HR
Wight: 40kg
Dimensions: 350 * 450 * 400mm
Product name: Pipe type terminal automatic peeling and crimping machine
Gas source: 0.6-0.8MPA
Control method: Man-machine interface, electronic control, pneumatic control
Operation mode: Automatic trigger/manual operation
Replacement product: Manually change related files, adjust vibrating plate and electric memory adjustment
Test items: Whether the terminal is detected or not, the right safety door is open.

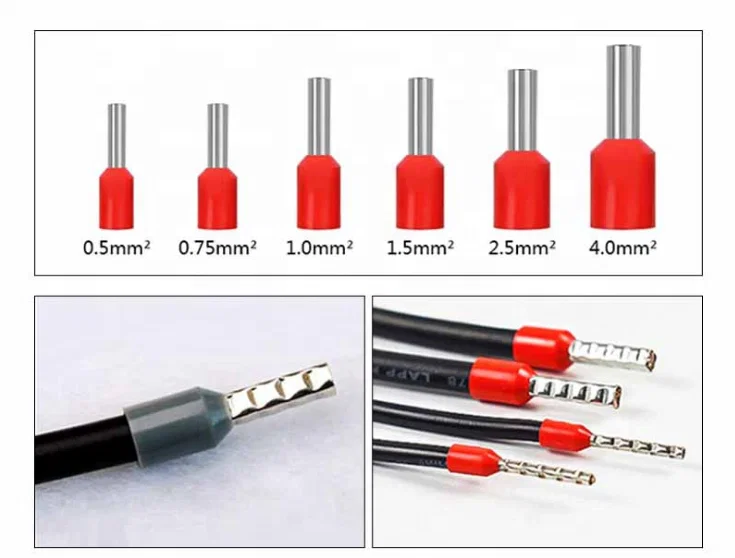

Applicable wire: Suitable for BVR line 0.5,0.75,1.0,1.5,2.5,4.0square
Terminal specification: The length of the terminal insulator is less than 7.5mm, and the length of the conductor is less than 10mm.

Crimping result
