Name: Wire Stripping Crimping Machine WPM-2008A2
Brand: High-Performance Cable Stripping Machines
SKU: WPM-2008A2
Availability: InStock
Rating: 5 (1 reviews)

Detailed description | 产品细节

Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine. Wire stripping and crimping terminal machine (WPM-2008A2)
1. Wire stripping and Terminal Crimping can be done in a one-time cassette mold holder and skinning system combination to achieve a coherent motion machine.
2. High-precision parts assembly, adjustment method for the tuning screw, precision is more accurate.
3. This machine adopts Japanese SMC pneumatic components, a more stab-magnetic clutch, energy saving, and no noise.
4. Electic adopts high quality. It’s saving and steady.

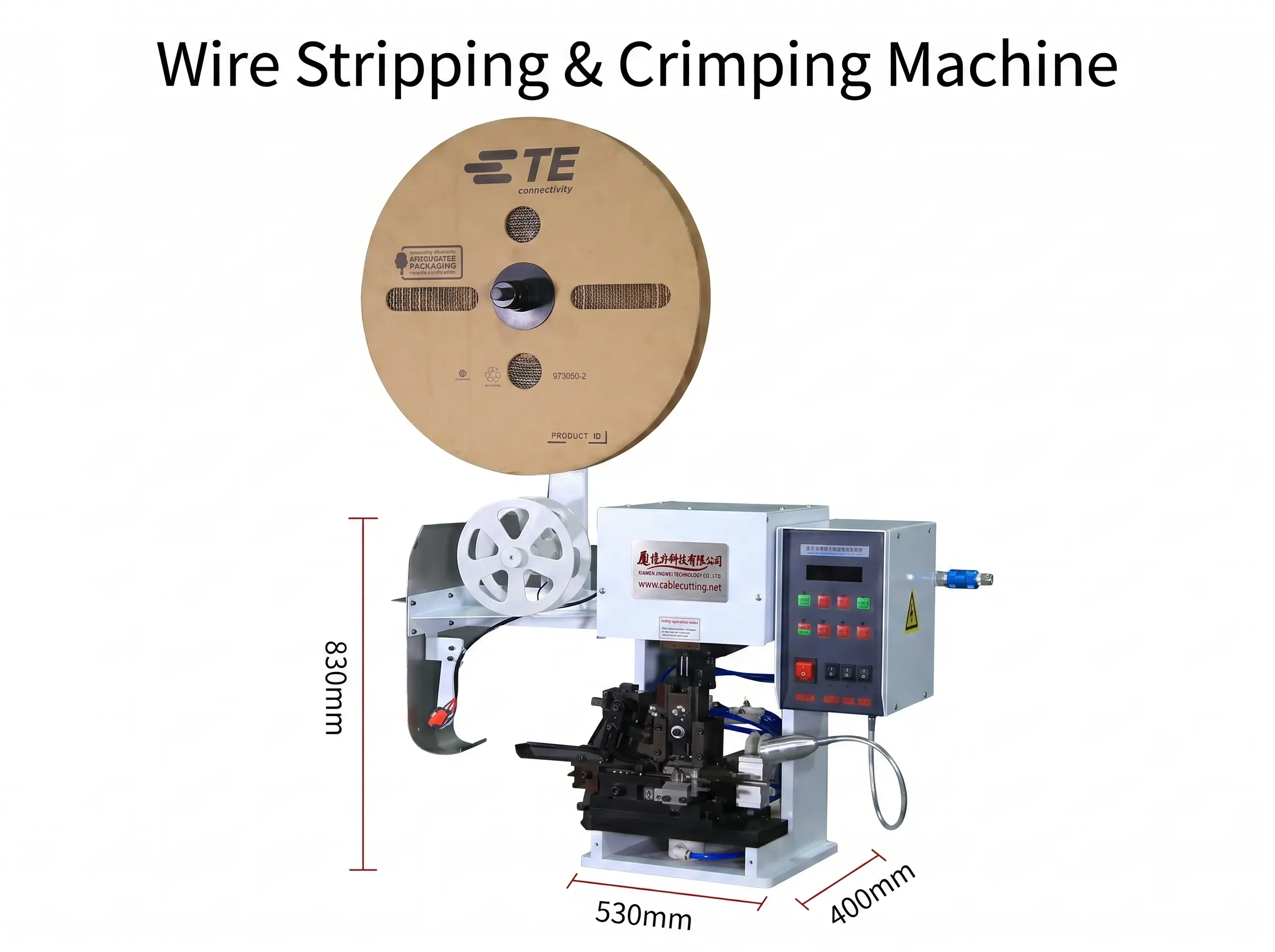

MEASUREMENT W410×L460×H420MM

Semi-Automatic stripping crimping machine, The multi-core sheathed cable stripping and ferrules crimping machine is specially designed for processing the core wires of multi-conductor sheathed cable and single wire, just change the crimping applicator for the different terminal.
1. Special for stripping and crimping the inner core of sheathed cable at one time.
2. Adopt advanced frequency conversion technology control, energy-saving, and environmental protection.
3. Stripping cylinder drive, High-speed, and accurate positioning.
4. The waste after stripping is vacuum suctioned, and the work area is clean and tidy.
5. The working speed can be adjusted through the operation panel to adapt to the operator’s proficiency.

Model	WPM-2008A2 1.5T	WPM-2008A2 2.0T	WPM-2008A2 3.0T
Available Wire Size	AWG32 - AWG20#	AWG32# - AWG20#	AWG24# - AWG16#
Stroke	30mm	40mm	50mm
Stripping Length	1.0-10mm	1-8mm	1-8mm
Length Tolerance	0.05-0.1mm	0.05-0.1mm	0.05-0.1mm
Crimp Force	1.5Ton	2.0Ton	3.0Ton
Power Supply	110/220VAC, 50/60Hz	110/220VAC, 50/60Hz	110/220VAC, 50/60Hz
Air Connection	0.3-0.6MPa	0.3-0.6MPa	0.3-0.6MPa

PRODUCTION CAPACITY 5000-6000pcs/h

Stripping and crimping effect

Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine

stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machine

stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machine applications of stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machine applications of Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine, Wire stripping, and Terminal Crimping can be done in one time cassette mold holder and skinning system combination to achieve the coherent motion machine
