Name: Tube Processor WPM-CRT-02ML
Brand: High-Performance Cable Stripping Machines
SKU: WPM-CRT-02ML
Availability: InStock
Rating: 5 (1 reviews)

Detailed description | 产品细节

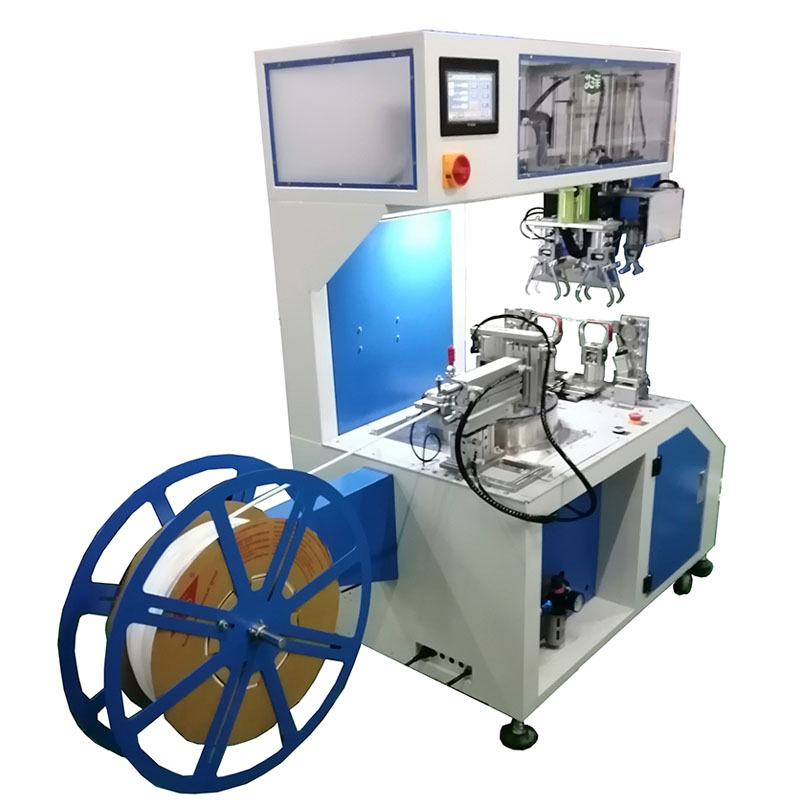

Tube cutting, coiling, and binding machine WPM-CRT-02ML is suitable for various types of materials such as hoses, ropes, water purification pipes, PVC pipes, PE pipes, and silicone pipes and can easily convert big rolls into smaller ones.

Technical parameters:

Coil appearance into a circle to tie double cable ties
Suitable wire diameter ≤Φ8mm (hose/rope/two-part pipe)
Tie to diameter ≤40mm
Production speed ≤900PCS/ H (measured by the line length of 1 meter around 3 times leaving the head and tail)
The inner diameter of the circle is 90-200mm (the inner diameter of the circle is fixed and not adjustable when leaving the factory)
Head length 80-200mm
Leave the tail 80-200mm long
Incoming wire reel ≤7.5KG
Suitable for cable tie-wrapped rubber core ≤7.5KG/ roll
Applicable air pressure 0.5-0.6Mpa
Suitable for 220V/50Hz power supply
Machine power 3000W
Size (mm) 1050*800*1600 mm
The weight of the machine is about 260KG
