Detailed description

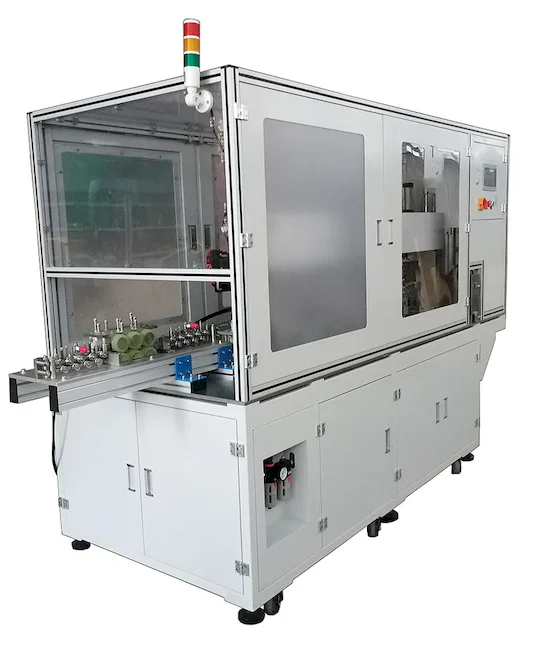

This high-end wire processing machine is designed to handle even the most complex tasks with ease. Equipped with a big circle-cutting mechanism, it can effortlessly strip and wind wires of various sizes and types. The double tie feature ensures that your wires are securely fastened, while the automatic meter function guarantees precise measurements every time.
Technical parameters
Applicable wire diameter 4-8mm
Cutting length 3-14m
Cutting line length accuracy: ±15 mm
Tie the outer circle with double ties
The inner diameter of the circle is 200-300mm (adjustable)
Binding diameter ≤40mm
Desquamation mode complete desquamation at both ends
Head retention length 200-350mm (adjustable)
Head peeling length 17-32mm (adjustable)
Tail length 200-350mm (random value within the interval)
Tail stripping length 20-100mm (adjustable)
Production efficiency: 200-380pcs /H (3-14m)
Applicable binding tape: Coated iron core ≤ 7.5kg/roll
Applicable air pressure: 0.5-0.6mpa
Power supply: NATIONAL standard 220V/50Hz
Machine power: 4KW/H
Machine size: about 2500L*1100W*1850Hmm
Machine weight: about 1200KG
Main accessories:
Cylinder: Yadeke cylinder and solenoid valve
Motor: Winding main servo motor 1000W Turbot
Motor: take line translation servo motor Turbot 1500W
Motor: online translation servo motor Dongling 750W
Motor: winding up and down 57 closed-loop mine race
Motor: Twisting and strapping belt spitting belt 57 stepper motor thunder race
Motor: storage tape motor 6W
Slide block: take line translation double slide block
Guide rail: lower paw translation double guide rail
PLC: vigor
Screen: Dimension control 7"
Power supply: clear weft
Frame: the iron frame is painted blue and white
Safety protection: stop when the door opens
Lack of material alarm: three-color lamp buzzes
Frame: the appearance of iron frame is painted blue and white
Infinitely variable speed active line unwinding machine
Incoming material capacity ≤150KG
Incoming wire tray inner hole diameter 50-100mm
The outer diameter of the incoming wire reel is ≤600mm
The thickness of the incoming wire coil ≤400mm
Machine power: 750W
Machine size: about 1450L*800D*980Hmm
Machine weight: about 100KG
ADAPTS the main engine wiring speed
With line storage function
Tension function
Deceleration function
Adaptive hole size of hollow wire tray
Single axle single work position
