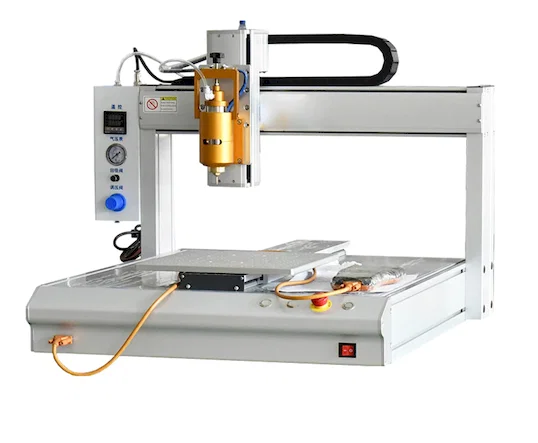

Model |
WPM-551 |
|
Working range(mm) |
500/500/100 |
|
Programmatic ally |
Import teaching programming or graphics |
|
Can move the graph track |
Point, line, arc, circle, cure, multiple lines, spiral, ellipse |
|
Control System |
Single-chip + hand box control |
|
Dispensing head |
PUR dispensing head/PUH dispensing head |
|
Dispensing cylinder |
30ml or 50ml |
|
Minimum discharge |
0.01ml |
|
The glue frequency |
5Time/SEC |
|
Load |
10KG |
|
Axial dynamic speed X/Y/Z(mm/sec) |
0-600mm/sec |
|
Repeatability(mm) |
±0.02mm |
|
Program record mode |
At least 100,5000 points each |
|
Display mode |
LCD Teaching box |
|
Motor system |
stepper motor |
|
Guide |
Taiwan upper silver linear guide |
|
Wire rod |
Taiwan TBI silver bar |
|
Belt |
Italy synchronous belt |
|
Motion filling function |
3 Axis |
|
Input power |
AC110V~ 220V |
|
External control interface |
RS232 |
|
Motor control shaft number |
3 Axis |
|
Outline size(mm) |
720*785*596.5mm |
|
Weight(KG) |
65KG |
