Name: Pneumatic Electronic Wire Stripper WPM-200T
Brand: JINGWEI
SKU: WPM-200T
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

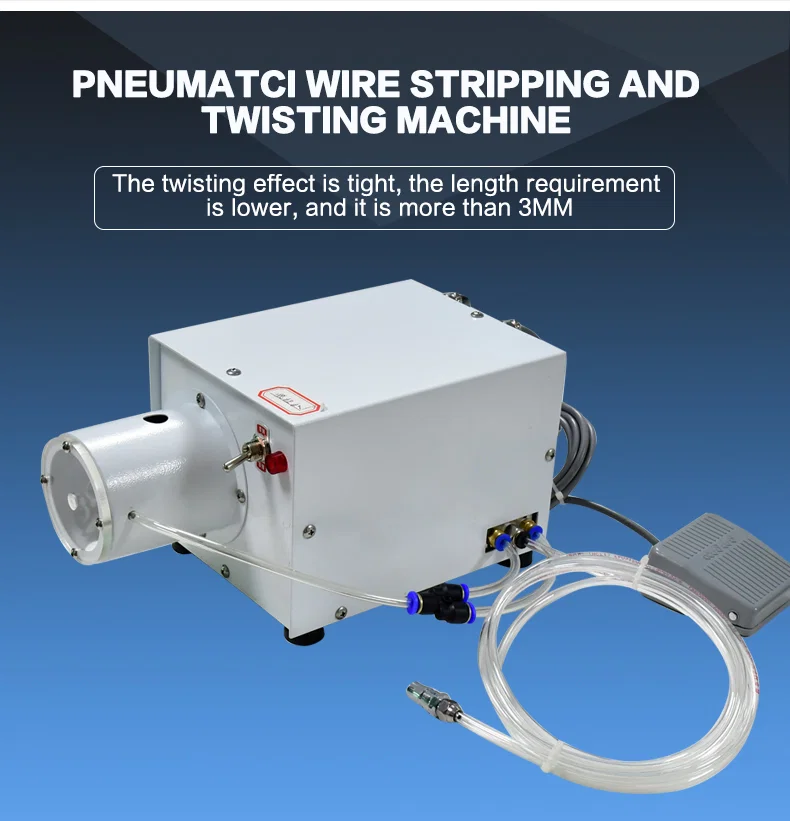

Pneumatic Electronic Wire Stripper WPM-200T

Pneumatic Electronic Wire Stripper WPM-200T
Model No: WPM-200T
WPM-200T Pneumatic Electronic Wire Stripper: Pneumatic stripper designed for delicate electronic wires. Gentle stripping action to prevent damage. Precise and controllable. Essential for electronic component assembly.
Inquiry now

Detailed description

Wire stripping, twisting, and wire stripping machines are available in both pneumatic and manual multi-core options. Our high-quality machines ensure efficient wire stripping and twisting.

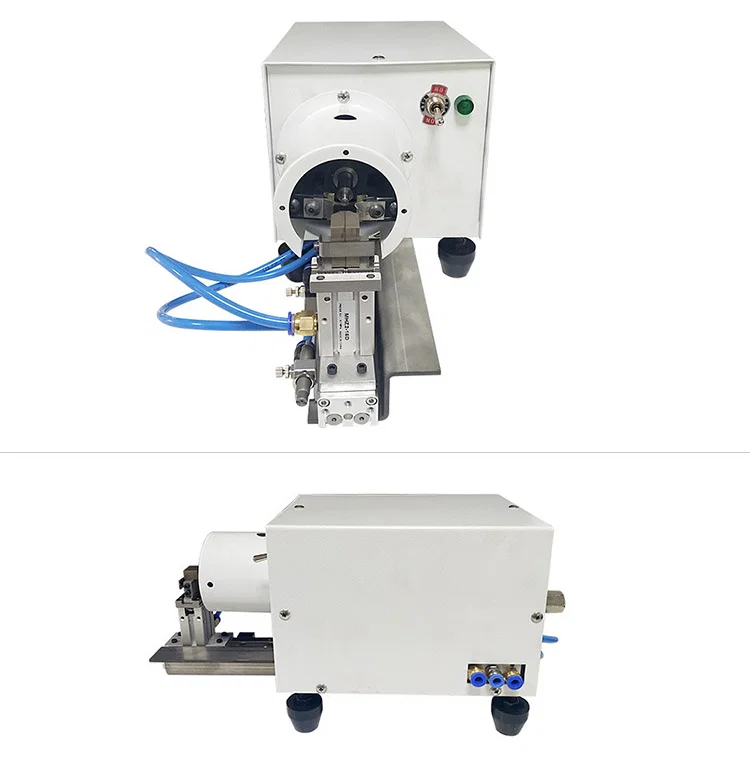

The use of an electric footswitch control reduces the labor intensity for workers, making operation more convenient and greatly improving work efficiency. The wire is clipped into modules which grip it securely, and then the work template is started by sliding a linking piece up and down located in the template. A blade driven by a cylinder bridge starts peeling while torsion on the side of the template and gears in the cylinder rack and pinion gear are driven by big gears that twist together to complete twisted lines.

Model: WPM-200T
Air Source: 6KG

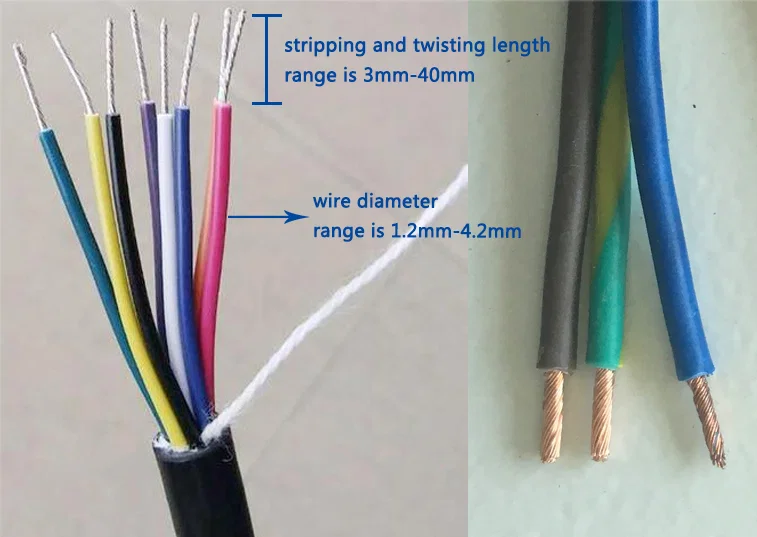

Strip and Twist Length: 3-45MM
Power Supply: 220V (50HZ)
Power: 30W
Suitable Wire Types: Power Line, Electronic Wire, Multicore Wire
Length Requirement: 〉5mm
Weight: 12KG
Machine Size: 320*180*170mm

Pneumatic electronic wire stripping and twisting machine, Pneumatic Wire Stripping Twisting Machine, Pneumatic Manual Multi-Core Wire Stripping Twisting Machine, High-Quality Wire Stripping And Twisting Machine

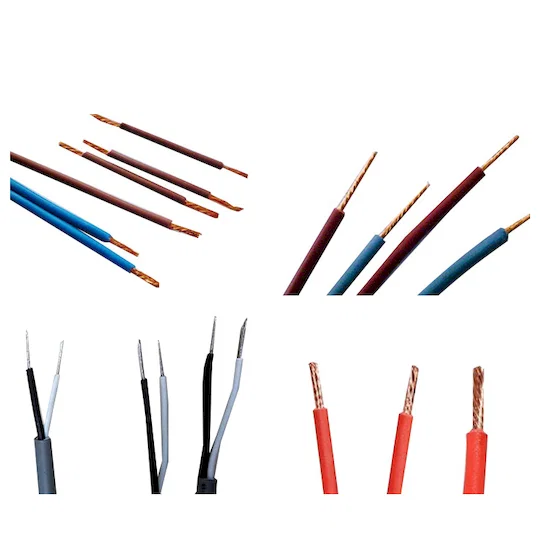

sample result of Pneumatic electronic wire stripping and twisting machine, Pneumatic Wire Stripping Twisting Machine, Pneumatic Manual Multi-Core Wire Stripping Twisting Machine, High-Quality Wire Stripping And Twisting Machine
