Detailed description

Coaxial cable stripping machine, Automatic coaxial cable machine, Micro coaxial cable stripping machine, Coax cable stripper, Coaxial wire stripper machine, Wire stripper for coaxial cables.

Features:

1. Suitable for different types of semi-flexible and flexible coaxial wires, charging cables, and medical wires' processing in communication and the medical industry. The stripping edge is smooth and with no harm to the conductor.
2. Huma-computer interface, easy to operate and understand, Max. 9 layers of stripping and 99 sets of memory function.
3. Rotation blades head, four pieces of exquisitely designed blades improve stripping stability and blades' lifetime.
4. Adopt servo-motor, precision ball screw, and multi-point movement control system, working performance is stable and efficient.
5. Blades are made of imported tungsten steel and titanium alloy coating. sharp and durable.
6. This machine can meet multi-section stripping, stripping & twisting, automatic start in succession, and other special requirements.

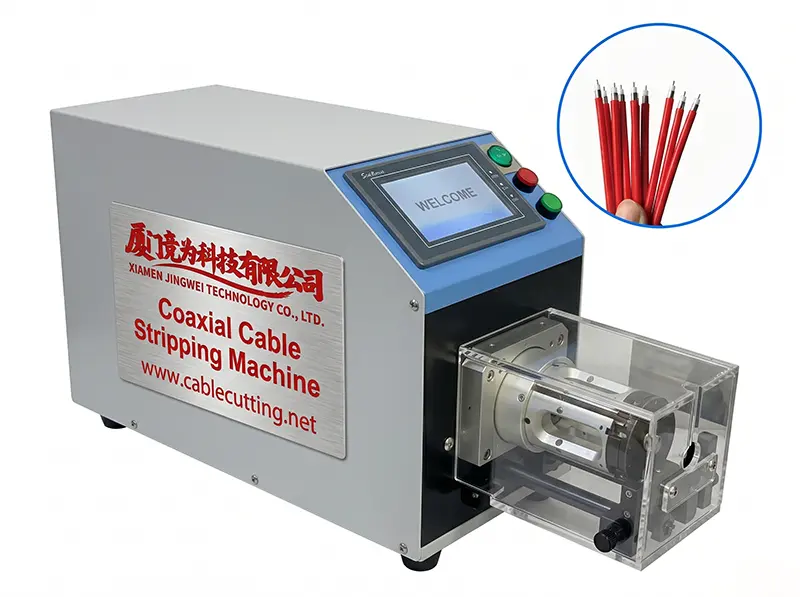

Model     WPM-6806D
Max. Stripping length    0.4-65mm
Cutting depth     0.01mm
Capacity    700-1200pcs/h(depends on wire material)
Wire diameter    1.5-9.5mm
Length accuracy     ±(0.002*L)mm
Max. stripping layer    9 layers
Noise level    <70dBA
Display    Touch Screen
Knife blade    2, material: Imports Switzerland tungsten steel
Centering slab    2, material: Imports tungsten steel
Clip wire device    Automatically adjusts the core, the dynamo drives, and the clip-tight strength process control.
Delivery Information    Delivery Information
Dimensions and weight     600*185*280mm    25KG
Power supply    220V/110V/50HZ/60HZ   400W
Port of Loading:     XIAMEN/SHENZHEN
Lead time    Normally in5-7days after the deposit received

Send us your question about this product
