Detailed description | 产品细节

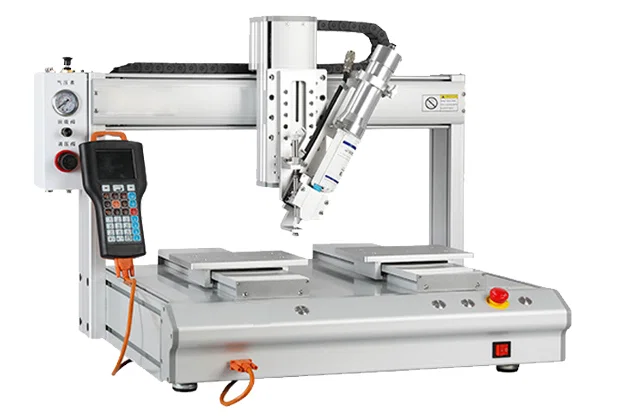

automatic AB Glue Dispensing machine 3-axis Dispenser control system machine
1. can replace manual operation with high-precision programming of dots, strips, arcs, and patterns on different planes or curved surfaces.
2. Suitable for positioning different jobs.
3. It supports graphics imported from computers, PLT files, TCF files, and G code files.

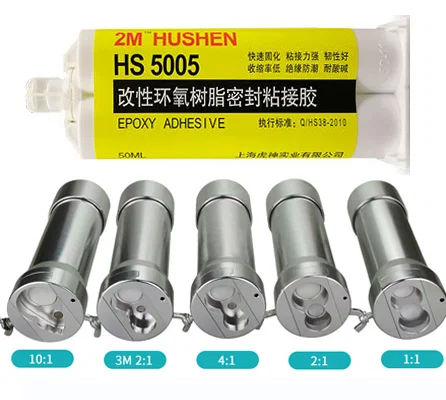

4. Suitable for glue: Anaerobic, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze
Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.

This equipment is suitable for high efficiency, high running precision, and the production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household
appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button
products, battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical seals, etc.

	WPM-5331
Working size	X	500
	Y1	300
	Y2	300
	Z	100
Max Load Y/Y/Z	10kg/5kg
Speed X/Y/Z	800/350 (mm/sec)
Repetitive positioning Accuracy	±0.02mm
Storage capacity	Total 100 group, each group 4000points
Programming method	Teach pendant
body material	sheet metal
Mode of transmission	Synchronous belt
