Wire Coil Taping Machine WPM-75
Model No: WPM-75
The Wire Coil Taping Machine WPM-75 automates tape application to wire coils. This machine provides consistent and secure taping, enhancing coil integrity and appearance for packaging and handling of wire coils.
Inquiry now

Detailed description

1.5S Taping Machine for Wire Coils, Semi-automatic adhesive tape wrapping wire coil machine
Product Description

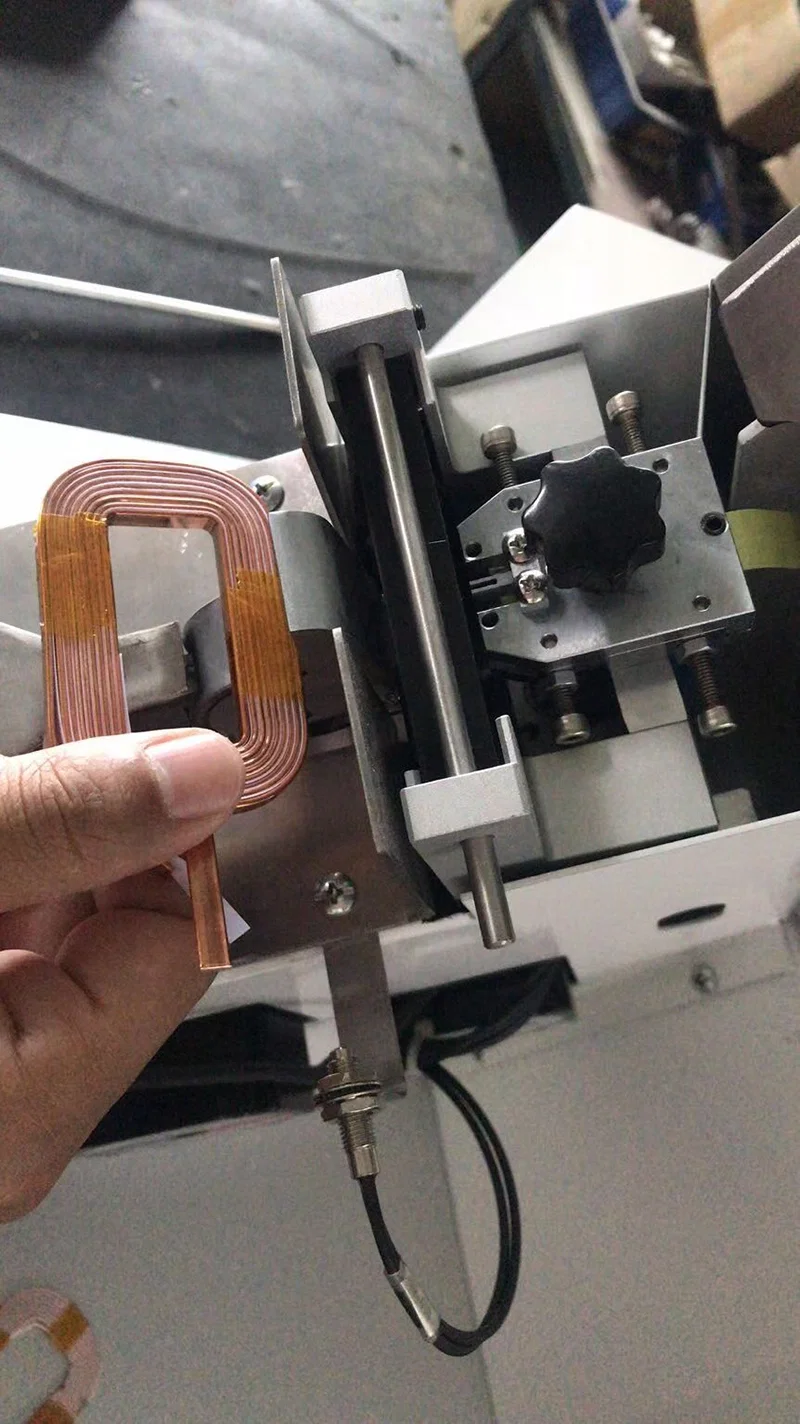

This is a semi-automatic tape wrapping-around machine for taping wire coils. The taping speed is within 1.5s.
1. Taping speed: within 1.5s
2. Applicable tape width: 12mm-18mm
3. Max tape OD: 120mm
4. Tape cutting range: 45mm-75mm
5. Replace the adhesive tape: the old and new adhesive tapes are bonded end to end.
6. The taping tightness is subject to the existing mold. If there is a special product, it is necessary to customize the reel according to the product size.
7. The vulnerable parts of this machine are paper-cutting scissors, paper rolls, and contact switches.
8. Other electrical components are guaranteed for one year, except for damage caused by man-made and irresistible factors.
Specification
Model Number WPM-75
Usage WINDING
Application wire coil-tapping
Taping speed 1.5S
Tape inner diameter 76mm
Tape outer diameter Max 120mm
Voltage 220v 50hz, 0.55kw
Cutting length 45-75 mm
Tape width 12-18mm
Air pressure 4kg/cm2
Size 670x390x480 mm
Weight 30kg

Taping Machine for Wire Coils, Semi-automatic adhesive tape wrapping wire coil machine
