Detailed description | 产品细节

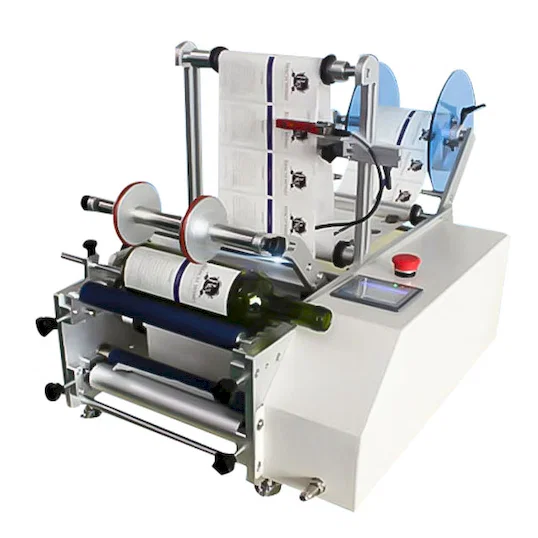

Automatic round bottle labeling machine
suitable for labeling various specifications of cylindrical objects, small taper round bottles, such as xylitol, cosmetic round bottles, wine bottles, etc.
Powerful function, single label, and double-label labeling function can be switched arbitrarily, the distance between the front and back double labels can be adjusted flexibly, the circumferential positioning function is optional, and the labeling is set on the circumferential surface;
Stable performance, using PLC optical fiber sensor electric control system control, supports the equipment to work for a long time.
Convenient production management, with label counting, power saving mode, photoelectric tracking label, and other functions, making production management easier.
Label Specification: adhesive sticker, transparent or opaque
Labeling Tolerance: ±0.5mm
Capacity(pcs/min): 15 ~ 45
Suit bottle size(mm): Ø15~Ø150;Can be customized
Suit label size(mm): L: 20-380; W(H): 20-220
Machine Size(L*W*H): ≈920*470*560 (mm)
Pack Size(L*W*H) : ≈1020*660*740 (mm)
Voltage: 220V/50(60)HZ;Can be customized
Power: 120W
N.W (KG): ≈45.0
G.W(KG): ≈67.5
Label Roll: ID: Ø76mm;OD:≤300mm
Air Supply: 0.4~0.6Mpa

Basic Application:
*For all kinds of cylindrical,tapered objects labeling, such as xylitol, cosmetics bottles, wine bottles.
*Can do One Label Wrapping Around Labeling,Two Labels in Front and Back Side Labeling,and Orientation Labeling.
*Date printer can be added to print production date,batch lot and expiry date while labeling.
*Widely used in food, cosmetic, chemical, pharmaceutical and other industries.
*Support customization. In stock.
