Fully automatic PTFE tape winding machine electronic cable wire tape wrapping machine
Function:
No need for a dedicated master, the number of turns and winding speed can be set by intuitive operation.
High efficiency and high quality, an average of 3 seconds to complete a complete process, the normal operation without any rework and loss, it is 5 times the efficiency of the traditional skilled manual operation,
raw material tape winding closely, not easy to fall off. Servo drive data is accurate, reliable, and stable
performance. 1 hour to produce 600-800 valves.

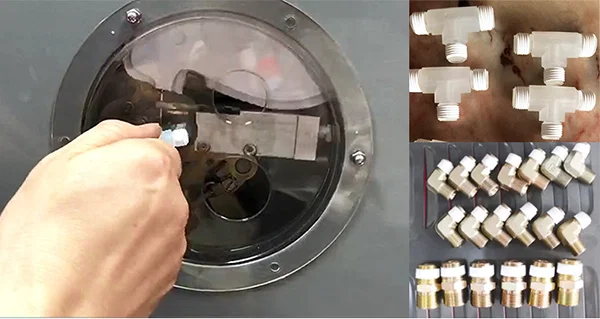

This machine is suitable for all raw tape wrapping equipment for all threaded joints, especially for raw tape ZG1/8-1 inch half-threaded joint
Specification:
1, P.T.F.E. tape wrapping and winding machine
2, Thread Seal Tape winding machine
3, Tape waterproof raw material tape wrapping machine
|
Model name |
P.T.F.E. tape wrapping and winding machine |
|
Applicable |
Suitable for all raw tape wrapping equipment for all threaded joints, especially for raw tape ZG1/8-1 inch half-threaded joint |
|
Pressure |
0.6Mpa |
|
Power |
750W |
|
Voltage |
220V |
|
Size |
450*400*560mm |
|
Weight |
70kg |
|
Working speed |
3-5pieces/Second (wrap 2-3 circles) |
|
Type |
Electric and automatic |
