Full automatic servo cable both sides crimping machine
Full automatic servo cable both sides crimping machine
  • Full automatic servo cable both sides crimping machine

  • Model No:
  • Full servo cable on both sides crimping machine
    Power: AC220v/50/60hz
    Capacity: 3800pcs~4500pcs/h(L=150MM)
    Wire range: AWG10#-AWG28#;0.25~3sqmm
    Cutting length: 30-9999mm(can be customized)
    Cutting accuracy: 0.5mm+cutting lengthx0.2%
    Stripping length: 0.5-8mm(can be customized)
    Pressure: 2.0T
    Air pressure: 5-6kgf
    Size: 835*765*1860
    Weight:400kg
  • Inquiry now
Detailed description

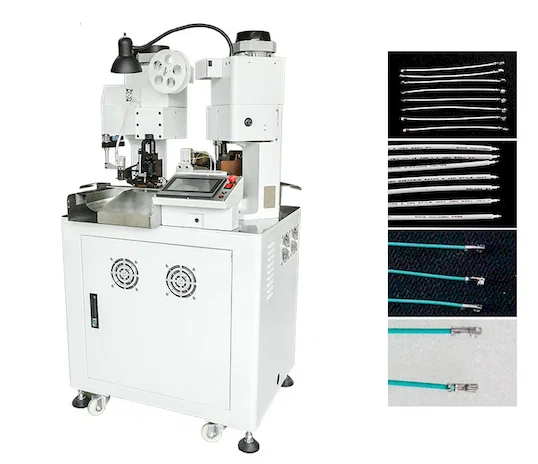

Full servo cable on both sides crimping machine

1. This camping equipment is designed for processing small wires or big cables thanks to the whole machine being controlled by
Mitsubishi servo with high power and high precision, all kinds of chain terminals are suitable for crimping by this terminal crimping machine.
2. One machine can complete wire cutting, wire stripping, and terminal crimping all processing with high accuracy and speed.
3. Length of wire cutting& stripping and depth of wire cutting& stripping and crimping depth can be adjusted on the touch screen, convenient& simple operation.
4. Integrated detector system, detect whether there is wire, whether there is terminal, whether there is air and bad crimping, etc.
make sure the machine working smoothly and crimping precisely.

5. Machine is suitable for OPT crimping to die, Korean crimping dies or European crimping dies.
Power: AC220v/50/60hz
Capacity: 3800pcs~4500pcs/h(L=150MM)
Wire range: AWG10#-AWG28#;0.25~3sqmm
Cutting length: 30-9999mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Pressure: 2.0T
Air pressure: 5-6kgf
Size: 835*765*1860
Weight:400kg
