Socket Coiling Binding WPM-210
Model No: WPM-210
The Socket Coiling Binding Machine WPM-210 automates coiling and binding of socket cables. This machine streamlines socket cable assembly, increasing production speed and ensuring consistent, organized cable bundles.
Inquiry now

Detailed description

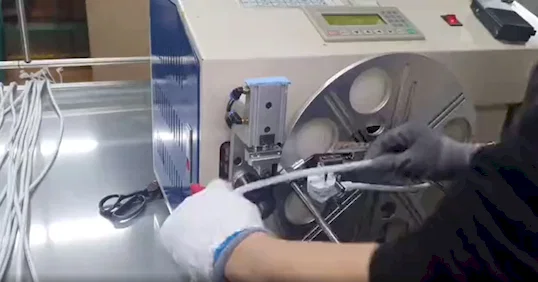

Coiling binding machine for socket WPM-210
Machine introduction:
This machine is suitable for AC power cords, DC power cords, USB cables, sheathed cables, shielded cables, video cables, HDMI high-definition cables, and other types of transmission lines using encapsulated core twist-tied into a bundle, can also be used to tape and other sealing plastic bag cores. This machine can reduce employee fatigue strength, improve work efficiency, save cable ties, and so on. Employees simply put the wires on the port it will automatically wind, then putting these wires around the Norse mouth, the machine will automatically Norse. The machine can set the binding wire length and number of laps, and count the yield. The machine adopts a PLC control program, and text display for parameter setting, easy to operate. Adjusting spacing, and replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal, large range of bundled, widely used.)

Parameters:

1	Power supply	AC220V AC110V
2	Power frequency	50HZ/60HZ
3	Rated power	120W
4	Winding length	Adjustable
5	Winding laps	Adjustable
6	Winding speed	Adjustable
7	Scope of application	Norse length	Norse diameter range
		65-120mm	Φ4—Φ18mm
		80-140mm	Φ8—Φ28mm
		115-180mm	Φ18—Φ40mm
		140-220mm	Φ28—Φ50mm
8	Norse laps	Can be set (recommended 3-6 laps)
9	cable ties	Packet core cable ties, cable ties of coreless
10	protective device	Fuses, fault alarm shutdown
11	Size(LXWXH)	400x380x580mm
12	Total weight	40-72Kg
